Author Topic: Needed wepons for 109 and 190?  (Read 628 times)

Offline oakranger

  • Plutonium Member
  • *******
  • Posts: 8380
      • http://www.slybirds.com/
Needed wepons for 109 and 190?
« on: February 06, 2011, 12:31:54 PM »
Came across this today and did a little more research on it.






This is what i found and wonder if 109 and 190 (might include the 37 mm flack gun on the 110) are needed upgrade of weapon systems.

http://www.tarrif.net/wwii/guides/a2g_rockets.htm
Logged
Oaktree

56th Fighter group

Offline Bino

  • Platinum Member
  • ******
  • Posts: 5938
Re: Needed wepons for 109 and 190?
« Reply #1 on: February 06, 2011, 12:50:55 PM »
Very cool pictures, never saw these before.  Thanks!

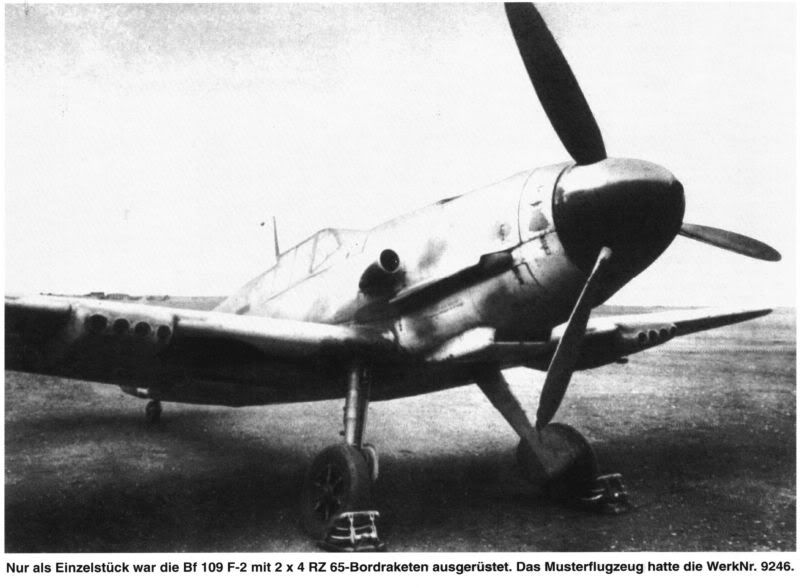

But these were one-offs.  That lower photo caption says the Bf-109F-2 was outfitted like this "Nur als Einzelstück" or "only as a unique example".  So I don't think that qualifies as having seen  service.  Sorry.
Logged


"The plural of 'anecdote' is not 'data'." - Randy Pausch

PC Specs

Offline bustr

  • Plutonium Member
  • *******
  • Posts: 12436
Re: Needed wepons for 109 and 190?
« Reply #2 on: February 08, 2011, 02:27:08 AM »
Logged
bustr - POTW 1st Wing


This is like the old joke that voters are harsher to their beer brewer if he has an outage, than their politicians after raising their taxes. Death and taxes are certain but, fun and sex is only now.

Offline Tyrannis

  • Persona Non Grata
  • Gold Member
  • *****
  • Posts: 3931
Re: Needed wepons for 109 and 190?
« Reply #3 on: February 09, 2011, 07:20:56 PM »
Quote from: oakranger on February 06, 2011, 12:31:54 PM
Came across this today and did a little more research on it.

(Image removed from quote.)

(Image removed from quote.)


This is what i found and wonder if 109 and 190 (might include the 37 mm flack gun on the 110) are needed upgrade of weapon systems.

http://www.tarrif.net/wwii/guides/a2g_rockets.htm
so if the picture is correct, those are rocket tubes installed into the 190s wings?
thats actually pretty clever, did it carry the 210mm anti-air rockets that the 190 in the game carries on its wingtips or a special type of rocket?
Logged

Offline Mirage

  • Nickel Member
  • ***
  • Posts: 375
Re: Needed wepons for 109 and 190?
« Reply #4 on: February 09, 2011, 07:23:08 PM »
no It would not be 210mm, look at the size of the openings, the rockets would have been closer to the PB1 rockets on the F8
Logged
Kommando Nowotny

I/Jg-301Gelb Zehn |

Offline Delirium

  • Platinum Member
  • ******
  • Posts: 7276
Re: Needed wepons for 109 and 190?
« Reply #5 on: February 09, 2011, 07:48:34 PM »
Quote from: Bino on February 06, 2011, 12:50:55 PM
Very cool pictures, never saw these before.  Thanks!

I never saw them either. I'm sure the drag from the openings in the wings and the weight would of been far less than they would of been from carrying those tubes around (with or without explosive bolts).

I'm sure many an Allied airman is thankful it never saw production.
Logged
Delirium
80th "Headhunters"
Retired AH Trainer (but still teach the P38 selectively)

I found an air leak in my inflatable sheep and plugged the hole! Honest!

Offline Lusche

  • Radioactive Member
  • *******
  • Posts: 23936
      • Last.FM Profile
Re: Needed wepons for 109 and 190?
« Reply #6 on: February 09, 2011, 07:52:45 PM »
Quote from: Delirium on February 09, 2011, 07:48:34 PM
I never saw them either. I'm sure the drag from the openings in the wings and the weight would of been far less than they would of been from carrying those tubes around (with or without explosive bolts).

I'm sure many an Allied airman is thankful it never saw production.



After tests the RZ 65 was judged to be too ineffective and thus development was stopped.
Logged
Steam: DrKalv
E:D Snailman

In November 2025, Lusche will return for a 20th anniversary tour. Get your tickets now!

Offline oakranger

  • Plutonium Member
  • *******
  • Posts: 8380
      • http://www.slybirds.com/
Re: Needed wepons for 109 and 190?
« Reply #7 on: February 09, 2011, 08:11:28 PM »
Quote from: Mirage on February 09, 2011, 07:23:08 PM
no It would not be 210mm, look at the size of the openings, the rockets would have been closer to the PB1 rockets on the F8

They are RZ-65 rockets.
Logged
Oaktree

56th Fighter group

Offline Mirage

  • Nickel Member
  • ***
  • Posts: 375
Re: Needed wepons for 109 and 190?
« Reply #8 on: February 09, 2011, 08:23:43 PM »
Quote from: oakranger on February 09, 2011, 08:11:28 PM
They are RZ-65 rockets.
ty for the name knew they wernt PB1's just trying to give him an idea of the size of the rockets
Logged
Kommando Nowotny

I/Jg-301Gelb Zehn |

Offline oakranger

  • Plutonium Member
  • *******
  • Posts: 8380
      • http://www.slybirds.com/
Re: Needed wepons for 109 and 190?
« Reply #9 on: February 09, 2011, 08:38:09 PM »
Quote from: Mirage on February 09, 2011, 08:23:43 PM
ty for the name knew they wernt PB1's just trying to give him an idea of the size of the rockets

OK,  :salute
Logged
Oaktree

56th Fighter group
