Author Topic: I have been chosen to host an ADS-B receiver  (Read 776 times)

Offline Meatwad

  • Plutonium Member
  • *******
  • Posts: 12881
I have been chosen to host an ADS-B receiver
« on: March 19, 2017, 03:10:05 PM »

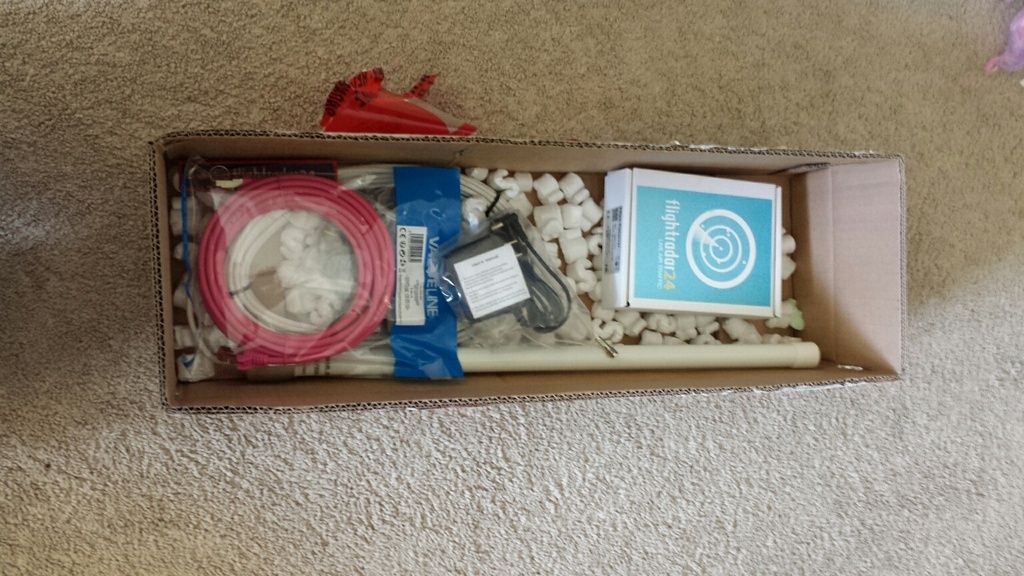

Been using Flightradar24's app and site for a while, and happened to stumble on the section to host one of their receivers. Filled out a quick application, then a few days later got an email as a follow up to request more location data, shots of mounting locations and horizon visibility from all four directions. Submitted it and to my surprise I got an email back saying I was approved to be a host. Five days later got an email with tracking info and three days later got an express package from Germany containing the kit

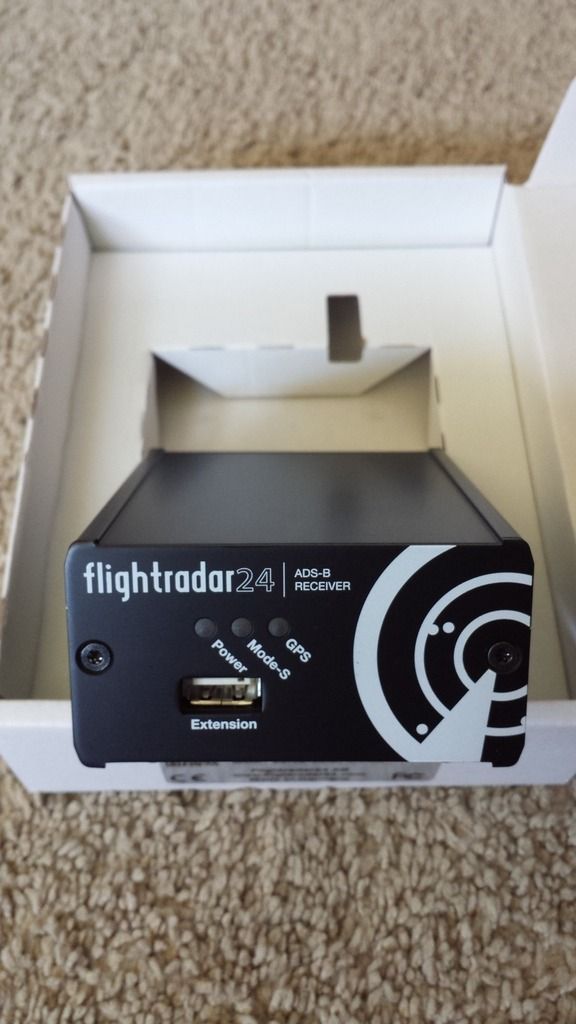

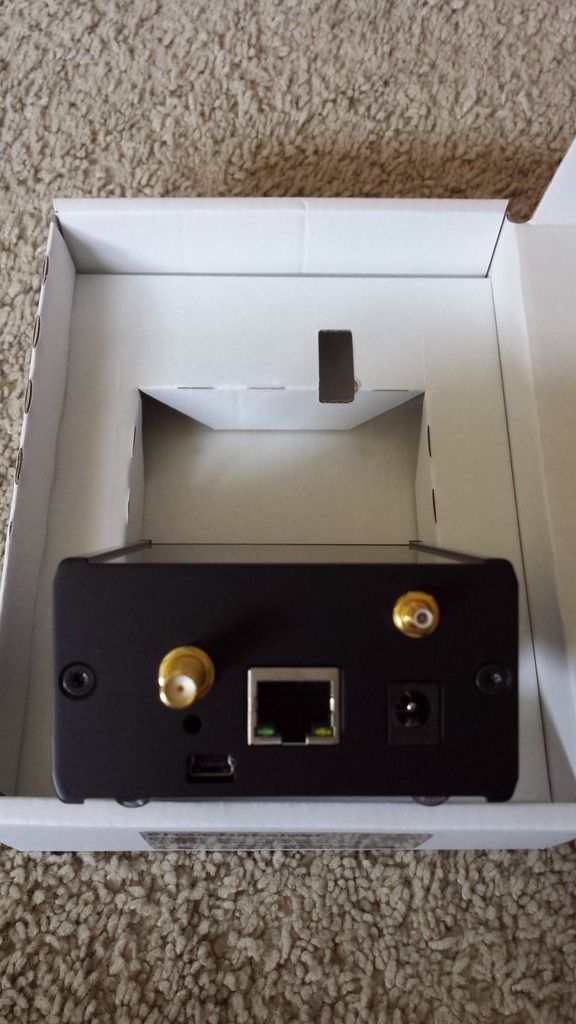

In the kit was the receiver itself

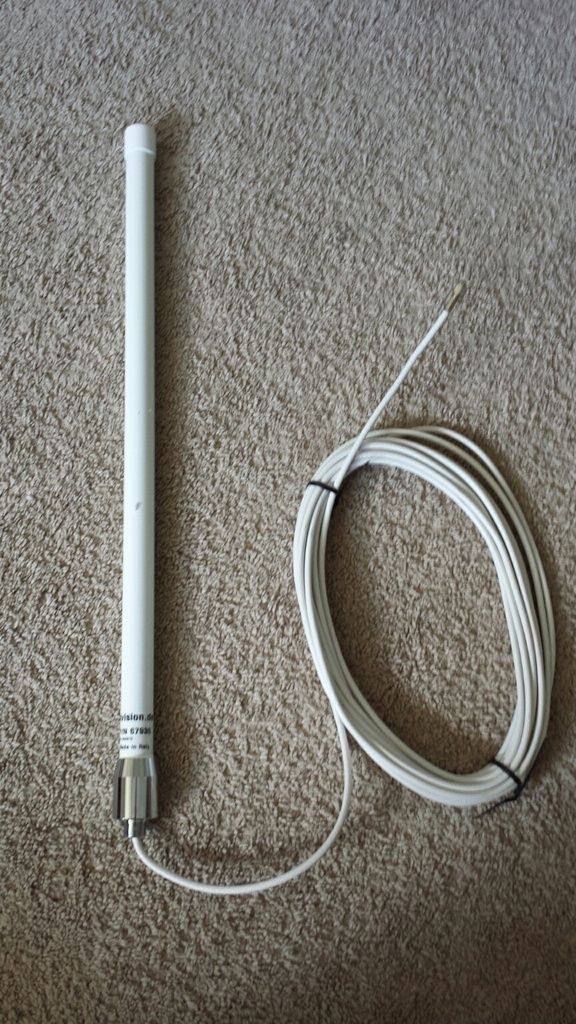

Shielded ethernet cable, GPS antenna, power supply for ADS-B receiver, and an external antenna (jetvision.de 1090 mhz antenna)




Pretty much plug and play. Have to send an email off to the support dept when its online for them to confirm data is being sent. Took longer to route the antenna and gps coax then it did to plug it in and get it on.

It isnt the perfect setup as I dont have horizon to horizon view, but I have gotten responses from about 175NM, average being 150MN due to trees around the block.

In exchange of being a host, I have a free business plan and free use of the premium flightradar24 app. Only downside is the equipment is still the property of flightradar24 and I can not use it to share with other sites. Also if I decide im done with it they will take it back. Not bad to getting my feet wet in the world of ADS-B. I have just recently ordered myself a Raspberry Pi 3 and ADS-B hardware to play with one of my own to try out more more experimenting.

My assigned radar name is for this receiver is F-KENL1. Anytime you are browsing aircraft in southern IL and see that as the radar, then my little hosting site is providing the data :)

Logged
See Rule 19- Do not place sausage on pizza.
I am No-Sausage-On-Pizza-Wad.
Das Funkillah - I kill hangers, therefore I am a funkiller. Coming to a vulchfest near you.
You cant tie a loop around 400000 lbs of locomotive using a 2 foot rope - Drediock on fat women

Offline ghi

  • Gold Member
  • *****
  • Posts: 2669
Re: I have been chosen to host an ADS-B receiver
« Reply #1 on: March 19, 2017, 08:46:39 PM »
Nice! :aok
i didn't know this site is located in Germany, i have it on my favorites for years.
Logged

Offline donnieboy

  • Zinc Member
  • *
  • Posts: 82
Re: I have been chosen to host an ADS-B receiver
« Reply #2 on: March 20, 2017, 11:46:15 AM »
WTG :aok

We have been quoting a TON of ADS-B out installs for the last 3 years and now are starting to see the sales. We just completed a Challenger 604 and have a Gulfstream G100 in next month for ADS-B and WAAS/LPV. The business is really starting to pick up ahead of the mandate. It's going to be RVSM all over again. :x
Logged

Offline colmbo

  • Gold Member
  • *****
  • Posts: 2246
      • Photos
Re: I have been chosen to host an ADS-B receiver
« Reply #3 on: March 20, 2017, 12:37:28 PM »
So what does this do for you?
Logged
Columbo

"When once you have tasted flight, you will forever walk the earth with your eyes turned skyward, for there you have been, and there you will always long to return."

Fate whispers to the warrior "You cannot withstand the storm" and the warrior whispers back "I AM THE STORM"

Offline FLOOB

  • Gold Member
  • *****
  • Posts: 3058
Re: I have been chosen to host an ADS-B receiver
« Reply #4 on: March 20, 2017, 12:43:12 PM »
How much does it pay?
Logged
“Montana seems to me to be what a small boy would think Texas is like from hearing Texans” - John Steinbeck

Offline donnieboy

  • Zinc Member
  • *
  • Posts: 82
Re: I have been chosen to host an ADS-B receiver
« Reply #5 on: March 20, 2017, 01:21:09 PM »
Quote from: colmbo on March 20, 2017, 12:37:28 PM
So what does this do for you?

As far as the aircraft operators, it adds a level of reporting to ATC. It links the GPS/Nav Computers to the Transponders to provide the additional info, heading, airspeed, alt, etc.
ADS-B stands for Advanced Discreet Surveillance - Broadcast, or ADS-out. ADS-B is mandated for 2020 and already for most of Europe and Australia. ADS-in is what Meatwad has as he is receiving the discreet signals to provide third party flight tracking.
Logged

Offline Meatwad

  • Plutonium Member
  • *******
  • Posts: 12881
Re: I have been chosen to host an ADS-B receiver
« Reply #6 on: March 20, 2017, 05:50:59 PM »
Quote from: FLOOB on March 20, 2017, 12:43:12 PM
How much does it pay?

In exchange of being a host, I have a free business account and free use of the premium flightradar24 app.

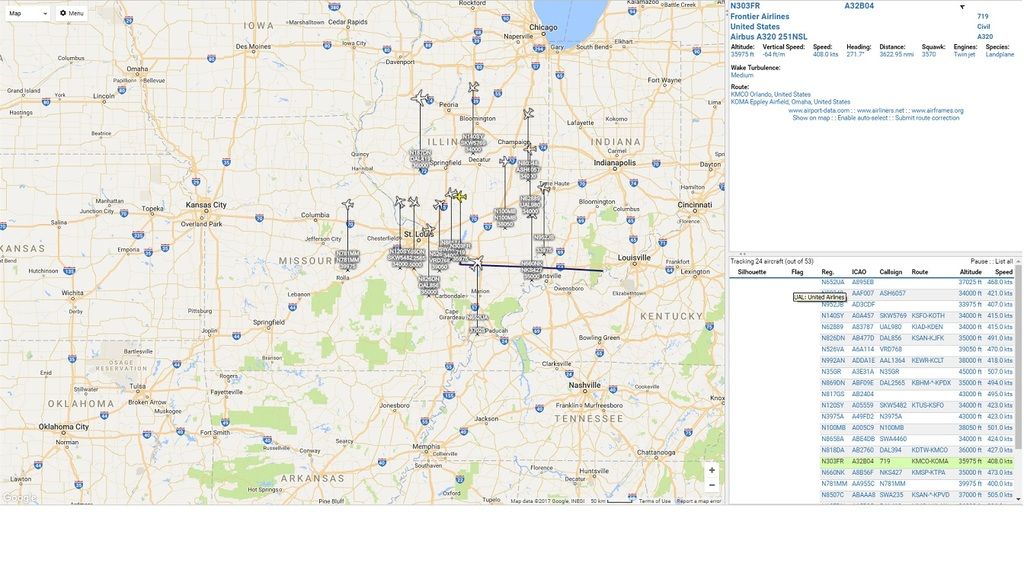

I get more out of a learning experience on how it works more then anything. I downloaded a program called virtual radar server and it shows real time exactly what aircraft I am currently tracking with my setup. Here is a screenshot of what im looking at right now. Overall its pretty neat to mess with

Logged
See Rule 19- Do not place sausage on pizza.
I am No-Sausage-On-Pizza-Wad.
Das Funkillah - I kill hangers, therefore I am a funkiller. Coming to a vulchfest near you.
You cant tie a loop around 400000 lbs of locomotive using a 2 foot rope - Drediock on fat women

Offline LilMak

  • Silver Member
  • ****
  • Posts: 1344
Re: I have been chosen to host an ADS-B receiver
« Reply #7 on: March 20, 2017, 06:23:09 PM »
Is it ADS-B out or just a receiver?
Logged
"When caught by the enemy in large force the best policy is to fight like hell until you can decide what to do next."
~Hub Zemke
P-47 pilot 56th Fighter Group.

Offline Meatwad

  • Plutonium Member
  • *******
  • Posts: 12881
Re: I have been chosen to host an ADS-B receiver
« Reply #8 on: March 20, 2017, 07:09:37 PM »
Just a receiver
Logged
See Rule 19- Do not place sausage on pizza.
I am No-Sausage-On-Pizza-Wad.
Das Funkillah - I kill hangers, therefore I am a funkiller. Coming to a vulchfest near you.
You cant tie a loop around 400000 lbs of locomotive using a 2 foot rope - Drediock on fat women
