Author Topic: Sheperds SIM PIT  (Read 18509 times)

Offline MADe

  • Silver Member
  • ****
  • Posts: 1117
Re: Sheperds SIM PIT
« Reply #60 on: August 09, 2010, 11:32:28 AM »
ASROCK X99 Taichi, INTEL i7 6850@4.5GHz, GIGABYTE GTX 1070G1, Kingston HyperX 3000MHz DDR4, OCZ 256GB RD400, Seasonic 750W PSU, SONY BRAVIA 48W600B, Windows 10 Pro /64

Offline MADe

  • Silver Member
  • ****
  • Posts: 1117
Re: Sheperds SIM PIT
« Reply #61 on: August 10, 2010, 12:52:10 PM »

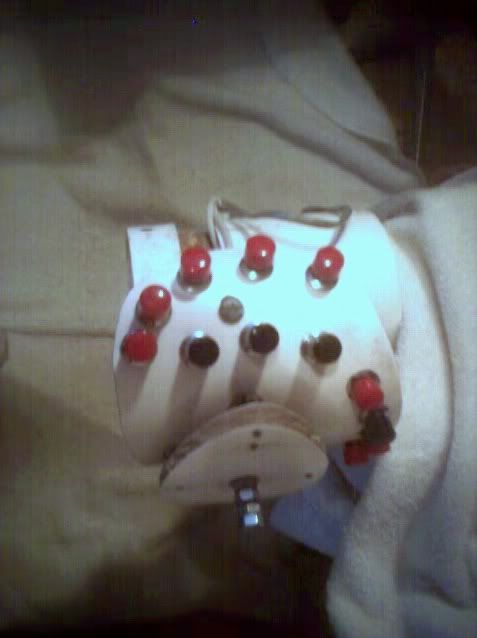

1st pic throttle.

2nd two pics are stick and pedals.
ASROCK X99 Taichi, INTEL i7 6850@4.5GHz, GIGABYTE GTX 1070G1, Kingston HyperX 3000MHz DDR4, OCZ 256GB RD400, Seasonic 750W PSU, SONY BRAVIA 48W600B, Windows 10 Pro /64

Offline MADe

  • Silver Member
  • ****
  • Posts: 1117
Re: Sheperds SIM PIT
« Reply #62 on: August 10, 2010, 12:54:25 PM »
 :joystick:


My DIY cockpit, been flying it and tweaking for 10 years almost. Two units USB. 1-3 axis 16 button, 1-3 axis 8 button
Spitfire stick
P-51 pedals
Right Hand Throttle unit
« Last Edit: August 10, 2010, 12:58:48 PM by MADe »
ASROCK X99 Taichi, INTEL i7 6850@4.5GHz, GIGABYTE GTX 1070G1, Kingston HyperX 3000MHz DDR4, OCZ 256GB RD400, Seasonic 750W PSU, SONY BRAVIA 48W600B, Windows 10 Pro /64

Offline Pand

  • Silver Member
  • ****
  • Posts: 901
      • Pand's Fighter Wing
Re: Sheperds SIM PIT
« Reply #63 on: August 10, 2010, 03:57:01 PM »
I figured out how to make my gauges on my 4th monitor work :x I havent done it yet due to cost but but the test worked great! :banana:

Really interested in this, how?!??!!

Regards,

Pandemonium
"HORDE not HOARD. Unless someone has a dragon sitting on top of a bunch of La7s somewhere." -80hd

Offline ink

  • Persona Non Grata
  • Plutonium Member
  • *******
  • Posts: 11274
Re: Sheperds SIM PIT
« Reply #64 on: August 10, 2010, 05:15:44 PM »
:joystick:
(Image removed from quote.)

My DIY cockpit, been flying it and tweaking for 10 years almost. Two units USB. 1-3 axis 16 button, 1-3 axis 8 button
Spitfire stick
P-51 pedals
Right Hand Throttle unit

thats pretty damn cool :aok

Offline alskahawk

  • Silver Member
  • ****
  • Posts: 877
Re: Sheperds SIM PIT
« Reply #65 on: August 13, 2010, 09:17:57 PM »

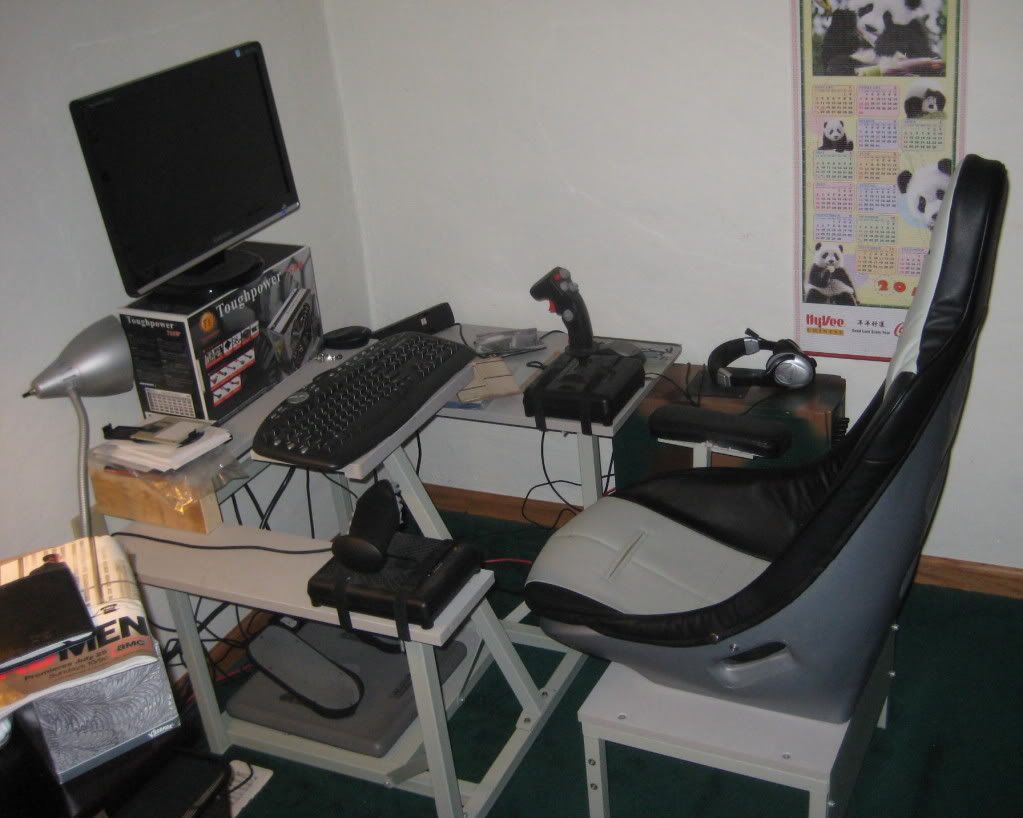

 My flight desk. This table was totally unsuitable for flying when I got it. I am currently modifying it to make it better.
« Last Edit: August 13, 2010, 09:37:53 PM by alskahawk »

Offline james

  • Silver Member
  • ****
  • Posts: 849
Re: Sheperds SIM PIT
« Reply #66 on: August 15, 2010, 07:37:54 PM »
My flight desk. This table was totally unsuitable for flying when I got it. I am currently modifying it to make it better. (Image removed from quote.)

Isn't that the sim system cockpit? What don't you like about it? I just ordered the FX version of that pit for my son and I.
6GUN

4.0GHZ Ryzen9 3900x
32GB DDR4 3200
GTX1070

Offline alskahawk

  • Silver Member
  • ****
  • Posts: 877
Re: Sheperds SIM PIT
« Reply #67 on: August 15, 2010, 09:45:43 PM »
 First off it was way to low. When I got it the shelves were below knee level. In the picture you can see that I had to use blocks and a box to add hieght to the monitor stand. What you can't see is that I also have 1.5 inch blocks under the shelves to raise them up. The seat is too narrow for wide loads, such as myself. I am 5'11" and about 230 lbs. Which is probably about average size. Not too skinny but not obese either.

I will post the updates I have done later this week. I have it all torn apart right now, trying to make it better.

Offline Reschke

  • Platinum Member
  • ******
  • Posts: 7724
      • VF-17 "The Jolly Rogers"
Re: Sheperds SIM PIT
« Reply #68 on: August 18, 2010, 10:20:15 PM »
I am starting on this one this weekend. I will be making both sides the same width as the right side on this picture. For more pictures follow this link and scroll down through it. http://www.simracingworld.com/phpBB/viewtopic.php?f=18&t=33506 This guy did a jam up job on this small setup.





Buckshot
Reschke from March 2001 till tour 146
Founder and CO VF-17 Jolly Rogers September 2002 - December 2006
"I'm baaaaccccckkk!"

Offline Masherbrum

  • Radioactive Member
  • *******
  • Posts: 22416
Re: Sheperds SIM PIT
« Reply #69 on: August 19, 2010, 09:31:59 AM »
sheperd, I hope that the water heater is relatively new.
FSO Squad 412th FNVG
http://worldfamousfridaynighters.com/
Co-Founder of DFC

Offline alskahawk

  • Silver Member
  • ****
  • Posts: 877
Re: Sheperds SIM PIT
« Reply #70 on: August 21, 2010, 12:51:49 PM »

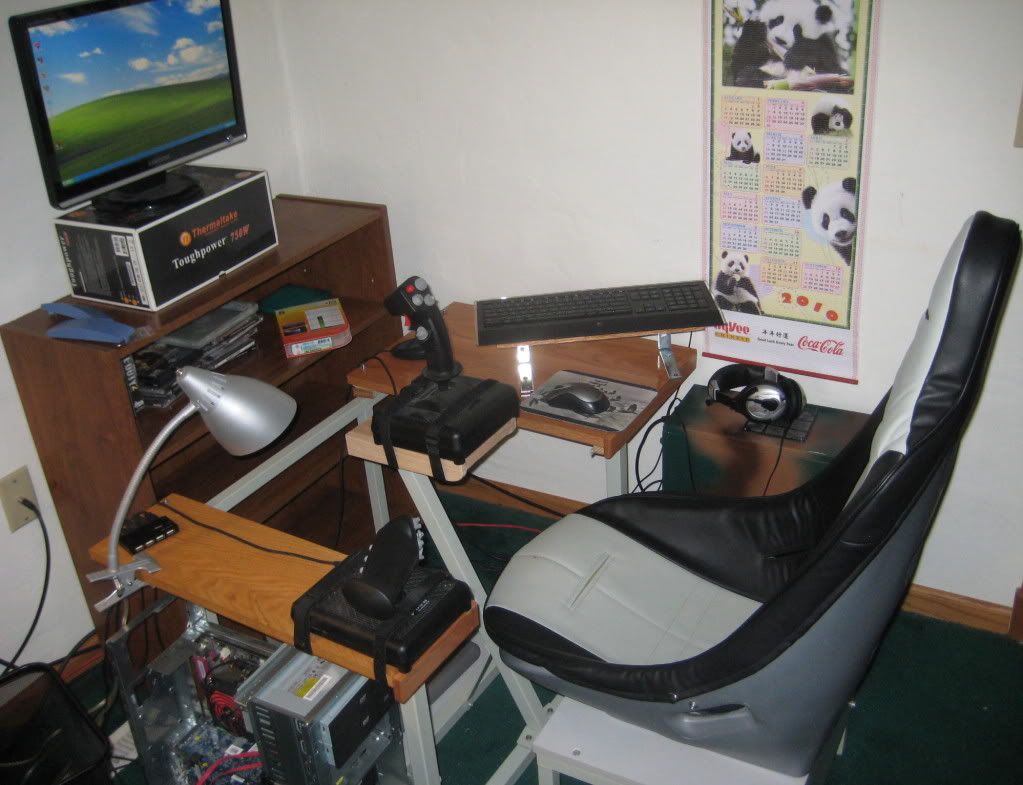

Here is the update I did to my flight desk. Computer: Gigabyte MB,3.2Mhz Intel CPU, 150GB Raptor, 4GB Ram, 8800GTX Video Card. Case:1990's era. Lots of mods. Front; 2-120mm fans, top 120mm fan. Rear 80mm fan.
« Last Edit: August 21, 2010, 12:59:12 PM by alskahawk »

Offline Reschke

  • Platinum Member
  • ******
  • Posts: 7724
      • VF-17 "The Jolly Rogers"
Re: Sheperds SIM PIT
« Reply #71 on: August 27, 2010, 02:41:26 PM »
Not bad there alaskahawk...nice cable management on the case also.
Buckshot
Reschke from March 2001 till tour 146
Founder and CO VF-17 Jolly Rogers September 2002 - December 2006
"I'm baaaaccccckkk!"

Offline james

  • Silver Member
  • ****
  • Posts: 849
Re: Sheperds SIM PIT
« Reply #72 on: August 27, 2010, 02:48:34 PM »
Any of you guys use one of these kind of things? http://www.combatconsole.com/index.htm

6GUN

4.0GHZ Ryzen9 3900x
32GB DDR4 3200
GTX1070

Offline Reschke

  • Platinum Member
  • ******
  • Posts: 7724
      • VF-17 "The Jolly Rogers"
Re: Sheperds SIM PIT
« Reply #73 on: August 27, 2010, 02:58:02 PM »
Any of you guys use one of these kind of things? http://www.combatconsole.com/index.htm



HOLY COW I wonder who makes that thing SPECIFICALLY for AH???? That is a cool thing to save tons of time and effort. The price is right in the range of what it would take to build your own using a Bodnar board as well. Not bad for a ready made piece.
« Last Edit: August 27, 2010, 03:00:08 PM by Reschke »
Buckshot
Reschke from March 2001 till tour 146
Founder and CO VF-17 Jolly Rogers September 2002 - December 2006
"I'm baaaaccccckkk!"

Offline james

  • Silver Member
  • ****
  • Posts: 849
Re: Sheperds SIM PIT
« Reply #74 on: August 27, 2010, 07:13:26 PM »
Called the owner to see if they still make them and if they could put my name on one. Thought it was pretty cool.
6GUN

4.0GHZ Ryzen9 3900x
32GB DDR4 3200
GTX1070
