Author Topic: Stall speed of the Mosquito FB.VI  (Read 5339 times)

Offline Wmaker

  • Platinum Member
  • ******
  • Posts: 5743
      • Lentolaivue 34 website
Stall speed of the Mosquito FB.VI
« on: July 27, 2012, 09:25:24 AM »
Probably over a year ago as I was wondering about the Me410's high wingloading and how its stall speed and hence "manevuvering envelope" would compare to the aircraft already in AH. At the time there was a very nice website (www.worldofkrauss.com) with very nice plots and data on a huge number of airfoils including the airfoils to which the foils of both Mosquito and Me410 are based. Unfortunately, the website is at least currently offline and I can't double check or link the to the data I used. From those, I calculated the theoretical stall speeds at sea level for both using 50% fuel/stardard loadout weights. I arrived to figures that are almost identical which is 119.3mph for both aircraft.

Now I tested both Mosquito and Me410 in game using these weights. I did power-off stalls at 500ft by trimming the plane by hand using the speed where the shaking/buffet starts as the indication that the aircraft has entered into a stall. This is assumption is based on Hitech's comment on the stall buffet in AH. Everything here was done with aircraft in clean configuration as the lift coefficients of 1.10 for the Mosquito and 1.42 for the Me410 where obtained from the data (www.worldofkrauss.com). In my tests I noticed that the Me410 stalls practically exactly where I thought it would , at 120mph. However, Mosquito stalled at 107mph, roughly at 13mph lower speed than I had expected. I calculated using "theoretical altitude" of 0ft. The air density difference of 500ft adds ~2mph to the stall speed.

So HTC's modelling seems to agree with my calculation as far as the Me410 is concerned and Mosquito's Pilot's Notes seem to roughly agree as far as Mosquito is concerned. Weight with 50% fuel for the Mosquito is 18463lbs in game. In Mosquito's pilot's notes a stall speed of 105 knots (120.8mph) at sea level with 18000lbs weight is given. The weight of the Mosquito with 50% fuel in AH is 18463lbs. So based on that, the stall speed should have been slightly higher than what the Pilot's Notes mention but instead, it's clearly lower at 107mph in AH when the 500ft of altitude and 463lbs of weight should increase it, not decrease.

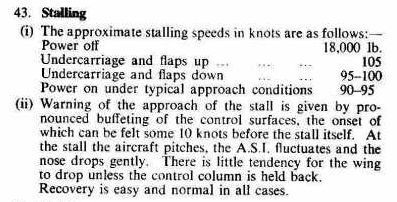

The relevant bit from the Mosquito's Pilot's Notes:


P.S. I know my explanation could have been a lot clearer but I just wanted to get this out here. It does contain the data though.
« Last Edit: July 27, 2012, 09:27:08 AM by Wmaker »
Wmaker
Lentolaivue 34

Thank you for the Brewster HTC!

Offline FLS

  • AH Training Corps
  • Plutonium Member
  • *******
  • Posts: 11621
      • Trainer's Website
Re: Stall speed of the Mosquito FB.VI
« Reply #1 on: July 27, 2012, 09:53:32 AM »
They might simply be defining the stall at a different point. Compare when the buffeting starts and it's pretty close, 2 mph, if I read you correctly.

Offline Karnak

  • Radioactive Member
  • *******
  • Posts: 23048
Re: Stall speed of the Mosquito FB.VI
« Reply #2 on: July 27, 2012, 10:12:22 AM »
They might simply be defining the stall at a different point. Compare when the buffeting starts and it's pretty close, 2 mph, if I read you correctly.
I think the 2mph is his adjustment for being at 500ft instead of 0ft.
Petals floating by,
      Drift through my woman's hand,
             As she remembers me-

Offline Wmaker

  • Platinum Member
  • ******
  • Posts: 5743
      • Lentolaivue 34 website
Re: Stall speed of the Mosquito FB.VI
« Reply #3 on: July 27, 2012, 10:31:04 AM »
They might simply be defining the stall at a different point. Compare when the buffeting starts and it's pretty close, 2 mph, if I read you correctly.

As Karnak said 2mph was the difference between sea level and 500ft per my calculation (1.25kg vs. 1.20kg diff. in air density). I have to find that quote fromHT but he said that the aircraft in AH as entered stall regime when the buffet starts. Anyway, altitude for altitude, weight to weight, the difference per my test/calcs is ~16.7mph which is quite significant difference when talking about aircraft's stall speed. Using the buffet as baseline makes my testing more conservative but it is based on HT's statement. I have to try to find that quote.
« Last Edit: July 27, 2012, 10:48:01 AM by Wmaker »
Wmaker
Lentolaivue 34

Thank you for the Brewster HTC!

Offline FLS

  • AH Training Corps
  • Plutonium Member
  • *******
  • Posts: 11621
      • Trainer's Website
Re: Stall speed of the Mosquito FB.VI
« Reply #4 on: July 27, 2012, 10:56:03 AM »
The stall regime is a range of speeds where drag increases without increasing lift, it's not a specific speed. That's why I suggested comparing the speed where buffeting starts. Unless you know how the stall was defined for the pilot notes it will be difficult to compare speeds directly.

Offline Wmaker

  • Platinum Member
  • ******
  • Posts: 5743
      • Lentolaivue 34 website
Re: Stall speed of the Mosquito FB.VI
« Reply #5 on: July 27, 2012, 11:22:41 AM »
The stall regime is a range of speeds where drag increases without increasing lift, it's not a specific speed. That's why I suggested comparing the speed where buffeting starts. Unless you know how the stall was defined for the pilot notes it will be difficult to compare speeds directly.

Heh, the buffet starts when the aircraft just barely keeps the altitude and variometer drops right after. I sure pilot notes mark a speed where the aircraft stalls ie. can't maintain level flight. At speed mentioned in the Pilot's Notes, Mosquito is in slow level flight in AH.
Wmaker
Lentolaivue 34

Thank you for the Brewster HTC!

Offline hitech

  • Administrator
  • Administrator
  • *****
  • Posts: 12425
      • http://www.hitechcreations.com
Re: Stall speed of the Mosquito FB.VI
« Reply #6 on: July 27, 2012, 02:44:30 PM »
Can you post a link to that 1.1 lift co? That sounds way out of range of typical wwii  aircraft.

HiTech

Offline Karnak

  • Radioactive Member
  • *******
  • Posts: 23048
Re: Stall speed of the Mosquito FB.VI
« Reply #7 on: July 27, 2012, 03:23:26 PM »
What is the normal range for WWII aircraft in terms of lift co?
Petals floating by,
      Drift through my woman's hand,
             As she remembers me-

Offline FLS

  • AH Training Corps
  • Plutonium Member
  • *******
  • Posts: 11621
      • Trainer's Website
Re: Stall speed of the Mosquito FB.VI
« Reply #8 on: July 27, 2012, 04:34:48 PM »
nm
« Last Edit: July 27, 2012, 04:43:43 PM by FLS »

Offline Wmaker

  • Platinum Member
  • ******
  • Posts: 5743
      • Lentolaivue 34 website
Re: Stall speed of the Mosquito FB.VI
« Reply #9 on: July 27, 2012, 05:08:59 PM »
Can you post a link to that 1.1 lift co? That sounds way out of range of typical wwii  aircraft.

It indeed does sound like it, but when looking at the airfoil itself it comes clear why it is lower than the contempory airfoils. Like I said, unfortunately the website where I got the data from has gone offline. RAF 34 was a very thin airfoil with a very small radius of curvature of the leading edge, which largely contributes for the small lift coefficient. It isn't really surprising that the Pilot's Notes are consistent with that.

In fact, that data from the Pilot's Notes would suggest that it is even lower.

I hope I could post you the shape of the air foil but I can't find a good pic at the moment, it would explain a lot more. It's much thinner, almost like a WWI-type airfoil. It truly differs from the normal NACA airfoils of WWII.
« Last Edit: July 27, 2012, 07:43:07 PM by Wmaker »
Wmaker
Lentolaivue 34

Thank you for the Brewster HTC!

Offline Scherf

  • Gold Member
  • *****
  • Posts: 3409
Re: Stall speed of the Mosquito FB.VI
« Reply #10 on: July 27, 2012, 06:41:37 PM »
RAF 34 section below. Bear in mind the Mosquito officially was RAF 34 (mod), due to the difference in section at the radiator. Will see if I can find a view of same.



CL and CD graph for RAF 34 here - don't know if it's of use.

http://www.hzdr.de/db/Cms?pOid=12531&pNid=1680
... missions were to be met by the commitment of alerted swarms of fighters, composed of Me 109's and Fw 190's, that were strategically based to protect industrial installations. The inferior capabilities of these fighters against the Mosquitoes made this a hopeless and uneconomical effort. 1.JD KTB

Offline hitech

  • Administrator
  • Administrator
  • *****
  • Posts: 12425
      • http://www.hitechcreations.com
Re: Stall speed of the Mosquito FB.VI
« Reply #11 on: July 27, 2012, 07:11:14 PM »
RAF 34 section below. Bear in mind the Mosquito officially was RAF 34 (mod), due to the difference in section at the radiator. Will see if I can find a view of same.

(Image removed from quote.)

CL and CD graph for RAF 34 here - don't know if it's of use.

http://www.hzdr.de/db/Cms?pOid=12531&pNid=1680

That is more what I would expect it to be.

HiTech

Offline Charge

  • Gold Member
  • *****
  • Posts: 3414
"When you wish upon a falling star, your dreams can come true. Unless it's really a giant meteor hurtling to the earth which will destroy all life. Then you're pretty much screwed no matter what you wish for. Unless of course, it's death by meteorite."

Offline Wmaker

  • Platinum Member
  • ******
  • Posts: 5743
      • Lentolaivue 34 website
Re: Stall speed of the Mosquito FB.VI
« Reply #13 on: July 28, 2012, 02:14:57 AM »
http://img846.imageshack.us/img846/4540/raf342.png

http://img716.imageshack.us/img716/8851/raf231.png

http://img444.imageshack.us/img444/9923/raf34.png

-C+

Thank you Charge! I didn't have the sense to save them. :(

This is the relevant bit:


Here's the general shape of the profile:


Me410's profile's general shape at the root for comparison:


EDIT/Oh, and thanks Scherf for that doc!/EDIT
« Last Edit: July 28, 2012, 02:43:28 AM by Wmaker »
Wmaker
Lentolaivue 34

Thank you for the Brewster HTC!

Offline FLS

  • AH Training Corps
  • Plutonium Member
  • *******
  • Posts: 11621
      • Trainer's Website
Re: Stall speed of the Mosquito FB.VI
« Reply #14 on: July 28, 2012, 08:05:38 AM »
Doesn't a 1.1 Clmax require a thin symmetrical airfoil?  Sherf's link seems to show at least 1.35 Clmax for the same cambered RAF 34 section.
