Making beer flow from kitchen wall
« on: April 26, 2014, 01:23:03 AM »
The following is a step-by-step guide:


Step 1: Have dog guard door so you can't be disturbed

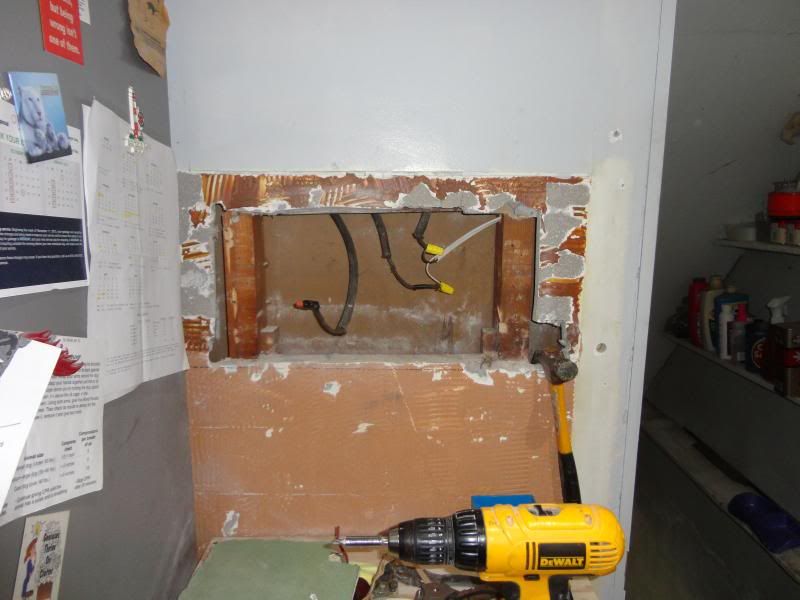

Step 2: Cut ugly hole in wall and re-route light switch/wires to newly installed junction box (not shown)

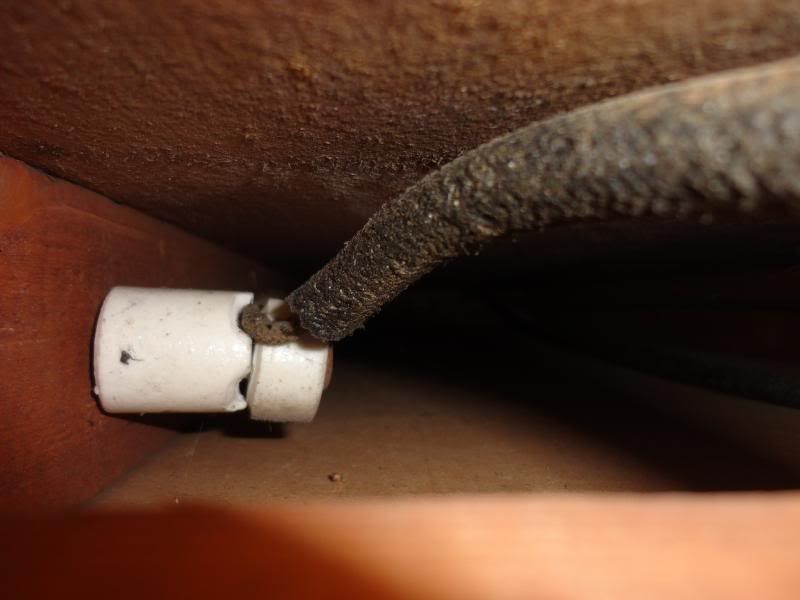

Step 3: Make sure there are no other electrical wires in wall by taking picture. Safety first!

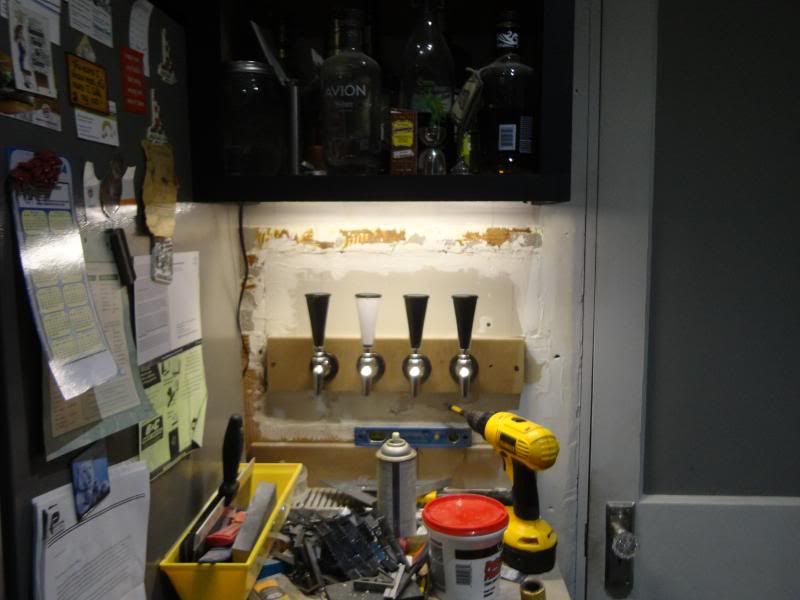

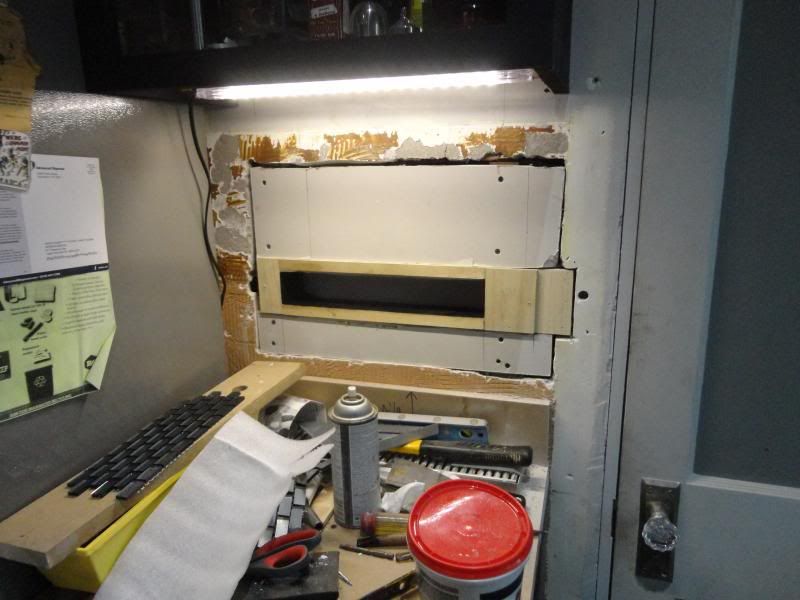

Step 4: Build liquor cabinet above taps, make insulated box for faucet shanks and cover ugly hole in wall with drywall.




Step 5: Plaster ugly drywall

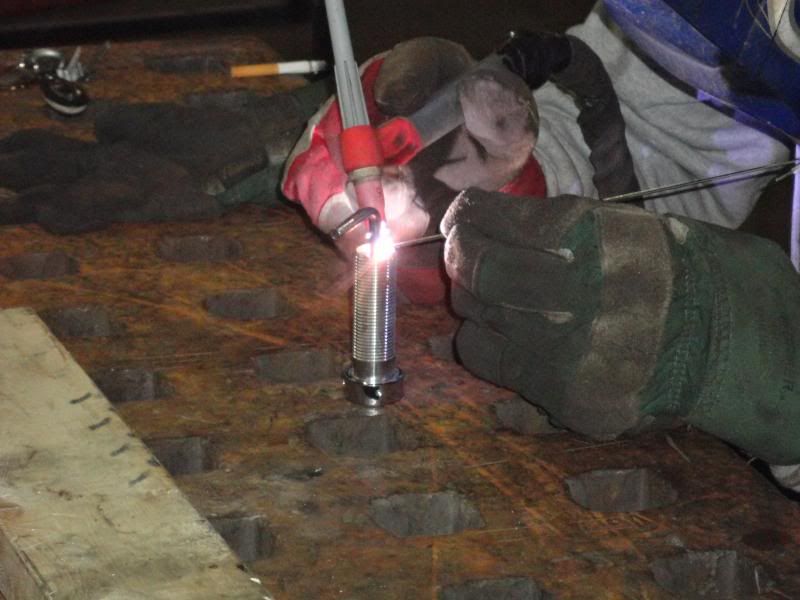

Step 6: TIG-weld tailpieces on beer shanks

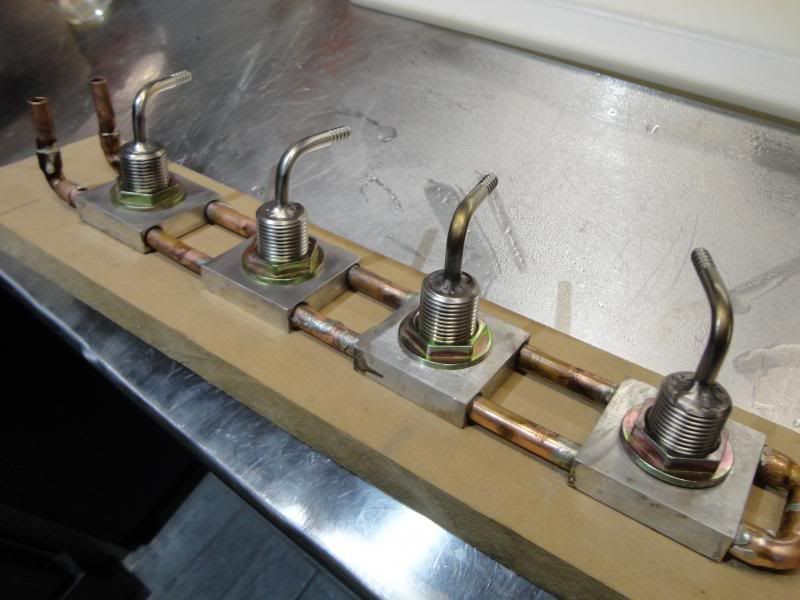

Step 7: Machine aluminum blocks and sweat some copper lines to keep beer shanks cold, all the way to the faucet.

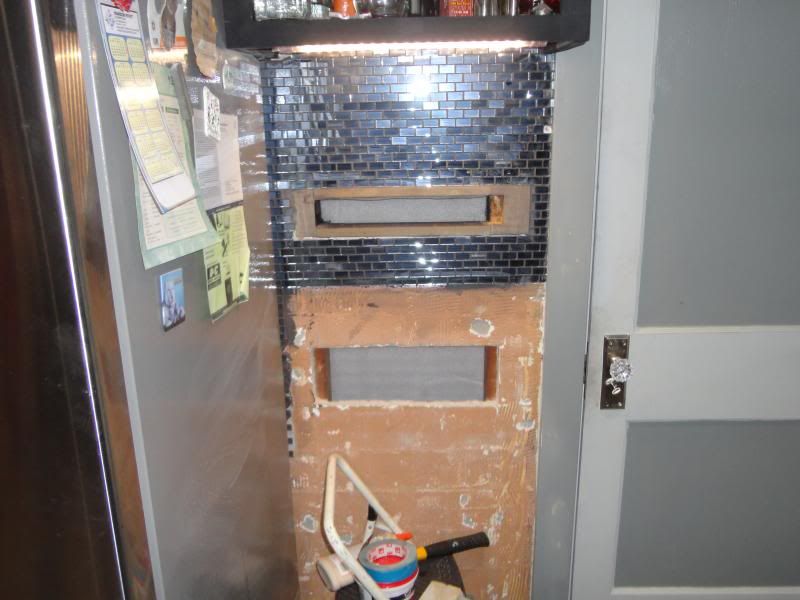

Step 8: Put tile on wall and grout same. Mix too much grout and leave excess to harden on back porch picnic table in bucket so you can never use bucket, again.

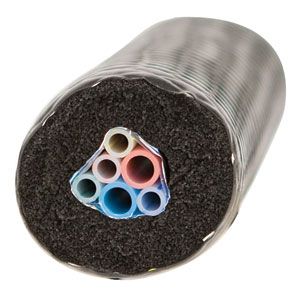

Step 9: Search interwebz for picture of trunk line

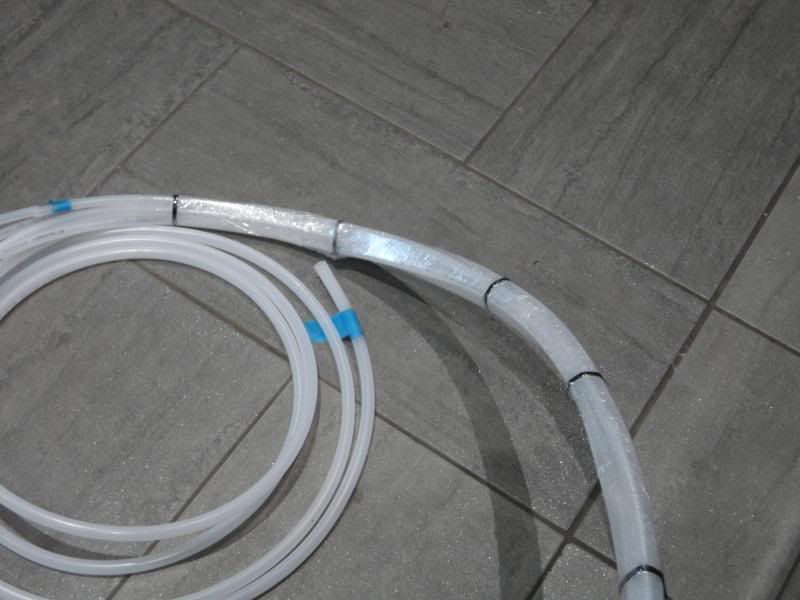

Step 10: Make trunk line with chiller lines in center, wire -tie together, wrap with saran wrap for vapor barrier, tin foil for thermal barrier, foam pipe wrap for insulation and electrical tape the whole mess together for aesthetics and to keep it from falling apart



Step 11: Have German engineers thoroughly inspect trunk line for quality

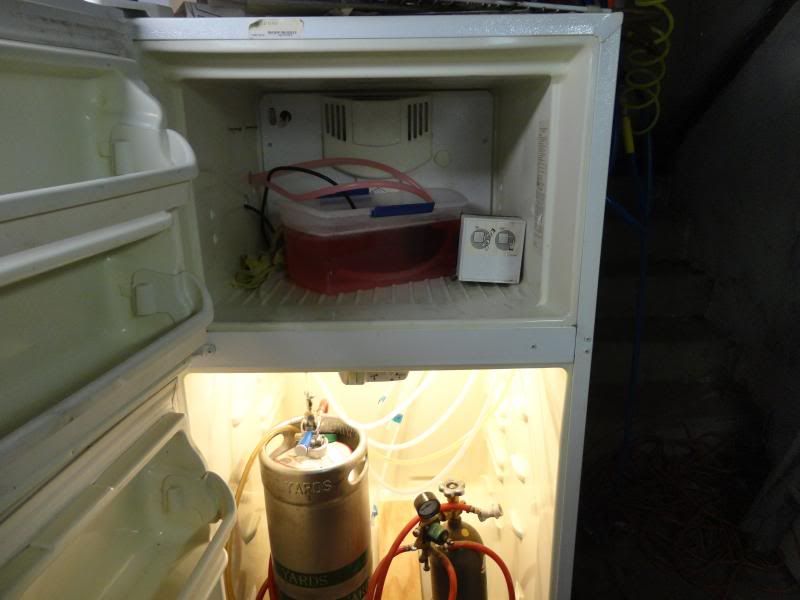

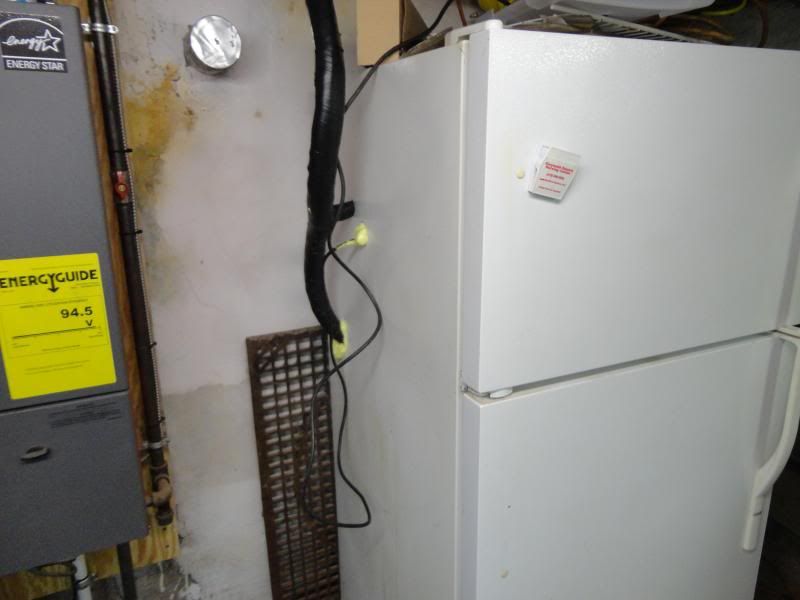

Step 12: Run trunk line into spare fridge, in basement.



Step 13: Use pond/fountain pump to recirculate RV anti-freeze through chiller lines of trunk line.
Feel free to employ judicious use of shop-vac on return line to start flow if pump does not have enough head to start circulation by itself




Step 14: Pour beer, drink same, smoke pipe while drinking.

Braümeister und Schmutziger Hund von JG11


We are all here because we are not all there.

Offline Scherf

  • Gold Member
  • *****
  • Posts: 3409
Re: Making beer flow from kitchen wall
« Reply #1 on: April 26, 2014, 04:06:53 AM »
It's been a long winter, hasn't it?















 :aok
... missions were to be met by the commitment of alerted swarms of fighters, composed of Me 109's and Fw 190's, that were strategically based to protect industrial installations. The inferior capabilities of these fighters against the Mosquitoes made this a hopeless and uneconomical effort. 1.JD KTB

Offline GScholz

  • Plutonium Member
  • *******
  • Posts: 8910
Re: Making beer flow from kitchen wall
« Reply #2 on: April 26, 2014, 06:05:51 AM »
That's awesome!  :O
"With the first link, the chain is forged. The first speech censored, the first thought forbidden, the first freedom denied, chains us all irrevocably."

Offline Dichotomy

  • Plutonium Member
  • *******
  • Posts: 12391
Re: Making beer flow from kitchen wall
« Reply #3 on: April 26, 2014, 06:46:29 AM »
 :aok :cheers:
JG11 - Dicho37Only The Proud Only The Strong AH Players who've passed on :salute

Offline mechanic

  • Plutonium Member
  • *******
  • Posts: 11328
Re: Making beer flow from kitchen wall
« Reply #4 on: April 26, 2014, 06:57:13 AM »
You are literally the greatest human being currently walking the Earth.
And I don't know much, but I do know this. With a golden heart comes a rebel fist.

Offline RngFndr

  • Nickel Member
  • ***
  • Posts: 579
Re: Making beer flow from kitchen wall
« Reply #5 on: April 26, 2014, 07:16:34 AM »
Very Cool :aok


Offline homersipes

  • Silver Member
  • ****
  • Posts: 1238
Re: Making beer flow from kitchen wall
« Reply #6 on: April 26, 2014, 08:28:38 AM »
looks like you got yourself some knob and tube, be CAREFUL tying into that crap as it can overheat and catch fire :old:  looks like a cool setup though  :cheers:

Offline VonMessa

  • Plutonium Member
  • *******
  • Posts: 11922
Re: Making beer flow from kitchen wall
« Reply #7 on: April 26, 2014, 10:17:40 AM »
Thanks guys.  It has been an adventure.

looks like you got yourself some knob and tube, be CAREFUL tying into that crap as it can overheat and catch fire :old:  looks like a cool setup though  :cheers:

That was the last piece in the house.  It is now gone.
Braümeister und Schmutziger Hund von JG11


We are all here because we are not all there.

Offline BluBerry

  • Persona Non Grata
  • Silver Member
  • ****
  • Posts: 1937
Re: Making beer flow from kitchen wall
« Reply #8 on: April 26, 2014, 10:49:45 AM »
The following is a step-by-step guide:

nice back splash  :cheers:

Offline homersipes

  • Silver Member
  • ****
  • Posts: 1238
Re: Making beer flow from kitchen wall
« Reply #9 on: April 26, 2014, 11:11:07 AM »
was telling the wife I need to build one of those but for soda, I dont drink beer so thats out of the question :lol  I like the backsplash the color looks nice with the light above it :aok  how long did it take you start to finish?

Offline VonMessa

  • Plutonium Member
  • *******
  • Posts: 11922
Re: Making beer flow from kitchen wall
« Reply #10 on: April 26, 2014, 11:42:50 AM »
was telling the wife I need to build one of those but for soda, I dont drink beer so thats out of the question :lol  I like the backsplash the color looks nice with the light above it :aok  how long did it take you start to finish?

One of the faucets is going to be a dedicated soda line, actually.

I would estimate about 20-25 hours, all said.  That includes the fact that I have to make a countertop and replace the backing board with something more aesthetically pleasing than the MDF that is currently there.
Braümeister und Schmutziger Hund von JG11


We are all here because we are not all there.

Offline HL117

  • Silver Member
  • ****
  • Posts: 804
      • Aircams
Re: Making beer flow from kitchen wall
« Reply #11 on: April 26, 2014, 04:34:57 PM »
That is awesome Von, make me thirsty, kewl dogs.


And I thought our 2 wire aluminum wiring left in some place within our walls was the worst, I see I was wrong, glad you you have all removed now.
Whether you think you can or cannot, you are right!

Offline mbailey

  • Platinum Member
  • ******
  • Posts: 5677
Re: Making beer flow from kitchen wall
« Reply #12 on: April 26, 2014, 05:15:16 PM »
You forgot step #15

Invite a certain Headhunter that lives 30mins north of you over to test said beer flowing from kitchen wall  :D

Looks great Von!!

Great to have German engineers around when things get tough  :lol
Mbailey
80th FS "Headhunters"

Ichi Go Ichi E
Character is like a tree and reputation like its shadow. The shadow is what we think of it; the tree is the real thing.

When the game is over, the Kings and Pawns all go into the same box.

Offline 68ZooM

  • Platinum Member
  • ******
  • Posts: 6337
Re: Making beer flow from kitchen wall
« Reply #13 on: April 26, 2014, 05:54:28 PM »
I need one of those in my garage  :old:
UrSelf...Pigs On The Wing...Retired

Was me, I bumped a power cord. HiTEch

Offline fbEagle

  • Nickel Member
  • ***
  • Posts: 584
Re: Making beer flow from kitchen wall
« Reply #14 on: April 26, 2014, 06:19:32 PM »
I need one of those in my garage  :old:

Beer tap or German engineer? I suppose one does require the other to function.   :D
