Author Topic: no substitute for cubic inches  (Read 2173 times)

Offline RTHolmes

  • Plutonium Member
  • *******
  • Posts: 8260
no substitute for cubic inches
« on: September 30, 2009, 06:05:11 AM »
... all 1,556,002 of them :rock

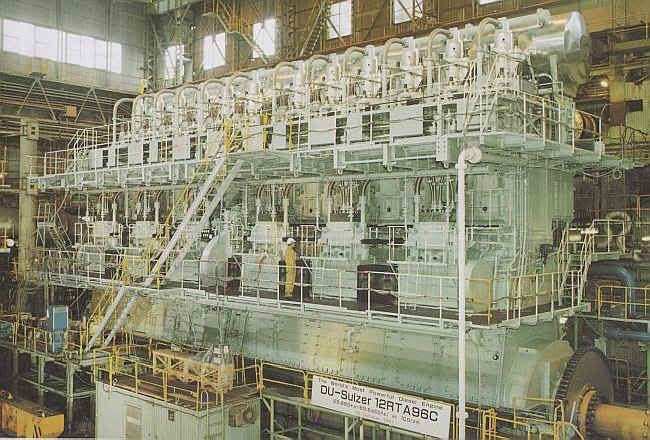

The Wartsila-Sulzer RTA96-C turbocharged two-stroke diesel engine is the most powerful and most efficient prime-mover in the world today. The Aioi Works of Japan 's Diesel United, Ltd built the first engines and is where some of these pictures were taken. It is available in 6 through 14 cylinder versions, all are inline engines. These engines were designed primarily for very large container ships. Ship owners like a single engine/single propeller design and the new generation of larger container ships needed a bigger engine to propel them. The cylinder bore is just under 38" and the stroke is just over 98". Each cylinder displaces 111,143 cubic inches (1820 liters) and produces 7780 horsepower. Total displacement comes out to 1,556,002 cubic inches (25,480 liters) for the fourteen cylinder version.

Some facts on the 14 cylinder version:

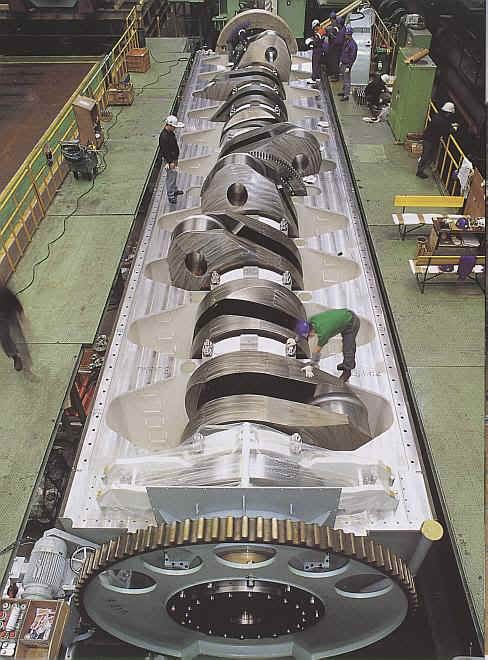

 Total engine weight: 2300 tons (The crankshaft alone weighs 300 tons.)
 Length: 89 feet
 Height: 44 feet
 Maximum power: 108,920 hp at 102 rpm
 Maximum torque: 5,608,312 lb/ft at 102rpm

Fuel consumption at maximum power is 0.278 lbs per hp per hour (Brake Specific Fuel Consumption). Fuel consumption at maximum economy is 0.260 lbs/hp/hour. At maximum economy the engine exceeds 50% thermal efficiency. That is, more than 50% of the energy in the fuel in converted to motion. For comparison, most automotive and small aircraft engines have BSFC figures in the 0.40-0.60 lbs/hp/hr range and 25-30% thermal efficiency range. Even at its most efficient power setting, the big 14 consumes 1,660 gallons of heavy fuel oil per hour.

:D
71 (Eagle) Squadron

What most of us want to do is simply shoot stuff and look good doing it - Chilli

Offline mechanic

  • Plutonium Member
  • *******
  • Posts: 11327
Re: no substitute for cubic inches
« Reply #1 on: September 30, 2009, 06:30:56 AM »
when you have to build walkways around the sides of your engine it is definitely reaching epic levels... :eek:
And I don't know much, but I do know this. With a golden heart comes a rebel fist.

Offline Ex-jazz

  • Nickel Member
  • ***
  • Posts: 482
Re: no substitute for cubic inches
« Reply #2 on: September 30, 2009, 06:46:07 AM »
How they are starting up those thing?


Offline Dragon

  • Platinum Member
  • ******
  • Posts: 7055
      • AH JUGS
Re: no substitute for cubic inches
« Reply #3 on: September 30, 2009, 07:11:09 AM »
 :O :O
Maximum torque: 5,608,312 lb/ft at 102rpm

SWchef  Lieutenant Colonel  Squadron Training Officer  125th Spartan Warriors

Offline Reschke

  • Platinum Member
  • ******
  • Posts: 7724
      • VF-17 "The Jolly Rogers"
Re: no substitute for cubic inches
« Reply #4 on: September 30, 2009, 08:41:06 AM »
How they are starting up those thing?



One heck of a kick starter that needs a bunch of Japanese to jump on it. At least that is my experience with any two-stroke engines that have been made for anything larger than 500cc from Japan.
Buckshot
Reschke from March 2001 till tour 146
Founder and CO VF-17 Jolly Rogers September 2002 - December 2006
"I'm baaaaccccckkk!"

Offline Shuffler

  • Radioactive Member
  • *******
  • Posts: 27317
Re: no substitute for cubic inches
« Reply #5 on: September 30, 2009, 10:41:08 AM »
My company just shipped some walkways and a exhaust and intake setup for a ship down in south america.
80th FS "Headhunters"

S.A.P.P.- Secret Association Of P-38 Pilots (Lightning In A Bottle)

Offline Captfish

  • Nickel Member
  • ***
  • Posts: 665
      • VF-6 Fighter Sqdn
Re: no substitute for cubic inches
« Reply #6 on: September 30, 2009, 10:55:12 AM »
How they are starting up those thing?

Usually they use compressed air to start them. I am not sure of that specific engine, But I have worked on some of a little smaller but still close in size that you keep the engine running and just shut down specific cylinders to work on them, and the crank case has hatches so you can crawl inside the engine to check bearings and oilers. that one looks like it has a oil sump though, the one I have worked on did not.\


more pics from Aioi Works

« Last Edit: September 30, 2009, 10:58:01 AM by Captfish »
'CO' VF-6 Fighter Sqdn

Hitting trees since tour 78

Offline Stalwart

  • Silver Member
  • ****
  • Posts: 1055
Re: no substitute for cubic inches
« Reply #7 on: September 30, 2009, 12:50:20 PM »
I think someone is compensating for something.

Offline Grayeagle

  • Silver Member
  • ****
  • Posts: 1488
Re: no substitute for cubic inches
« Reply #8 on: September 30, 2009, 02:58:55 PM »
-wonders if NHRA has a class for that-

-wonders how long till someone puts it in a motorcycle-

-Frank aka GE
'The better I shoot ..the less I have to manuever'
-GE

Offline RTHolmes

  • Plutonium Member
  • *******
  • Posts: 8260
Re: no substitute for cubic inches
« Reply #9 on: September 30, 2009, 03:00:00 PM »
-wonders how long till someone puts it in a motorcycle-

 :lol
71 (Eagle) Squadron

What most of us want to do is simply shoot stuff and look good doing it - Chilli

Offline shppr01

  • AvA Staff Member
  • Gold Member
  • *****
  • Posts: 2289
Re: no substitute for cubic inches
« Reply #10 on: September 30, 2009, 03:55:50 PM »
Ive got a 16 foot trihull that needs a new inboard ...I wonder mmmmmmmmmmmm!
Ingame : Shipper

Never put your gun down to hug a grizzly.

Offline pipz

  • Platinum Member
  • ******
  • Posts: 4899
Re: no substitute for cubic inches
« Reply #11 on: September 30, 2009, 04:27:54 PM »
when you have to build walkways around the sides of your engine it is definitely reaching epic levels... :eek:

It should make changing the spark plugs a bit easier  :aok  <BG>


Pipz
Silence tells me secretly everything.

Montreal! Free the Pitt Bulls!!!!!

Offline Delirium

  • Platinum Member
  • ******
  • Posts: 7276
Re: no substitute for cubic inches
« Reply #12 on: September 30, 2009, 04:34:25 PM »
I think I've done computer gaming for too long...

Looking at the picture, the first thing I thought of was Mechwarrior.
Delirium
80th "Headhunters"
Retired AH Trainer (but still teach the P38 selectively)

I found an air leak in my inflatable sheep and plugged the hole! Honest!

Offline Wolfala

  • Platinum Member
  • ******
  • Posts: 4875
Re: no substitute for cubic inches
« Reply #13 on: September 30, 2009, 05:33:33 PM »
I think I've done computer gaming for too long...

Looking at the picture, the first thing I thought of was Mechwarrior.
(Image removed from quote.)

Warhammer vs an Atlas, that's a toughie.


the best cure for "wife ack" is to deploy chaff:    $...$$....$....$$$.....$ .....$$$.....$ ....$$

Offline Enker

  • Silver Member
  • ****
  • Posts: 1553
Re: no substitute for cubic inches
« Reply #14 on: September 30, 2009, 05:34:01 PM »
I think I've done computer gaming for too long...

Looking at the picture, the first thing I thought of was Mechwarrior.
(Image removed from quote.)
You win! My first thought was Gundam


followed by



That engine would be perfect for powering our defense against the zombie apocalypse.
InGame ID: Cairn
Quote from: BillyD topic=283300.msg3581799#msg3581799
... FOR TEH MUPPET$ TO PAD OUR SCO?E N to WIN TEH EPIC WAR OF TEH UNIVERSE We MUST VULTCHE DA RUNWAYZ N DROP UR GUYZ FIGHTERZ Bunkarz Then OUR SKWAD will Finarry Get TACTICAL NOOK for 25 KILL SCORE  STREAK>X
