Author Topic: Messerschmitt in a wind tunnel, 1940  (Read 1841 times)

Offline CZCH64

  • Copper Member
  • **
  • Posts: 100
Messerschmitt in a wind tunnel, 1940
« on: December 02, 2012, 03:11:35 PM »
Logged
aka....... SCRATCH

Offline DEECONX

  • Silver Member
  • ****
  • Posts: 1502
Re: Messerschmitt in a wind tunnel, 1940
« Reply #1 on: December 02, 2012, 09:44:53 PM »
Cool photos  :aok
Logged

Offline GScholz

  • Plutonium Member
  • *******
  • Posts: 8910
Re: Messerschmitt in a wind tunnel, 1940
« Reply #2 on: December 02, 2012, 11:01:20 PM »
Ze Germans had some very impressive wind tunnels at the time. During the war they built one capable of producing Mach 4 wind speeds for the V2 project.
Logged
"With the first link, the chain is forged. The first speech censored, the first thought forbidden, the first freedom denied, chains us all irrevocably."

Offline Lusche

  • Radioactive Member
  • *******
  • Posts: 23931
      • Last.FM Profile
Re: Messerschmitt in a wind tunnel, 1940
« Reply #3 on: December 02, 2012, 11:08:15 PM »

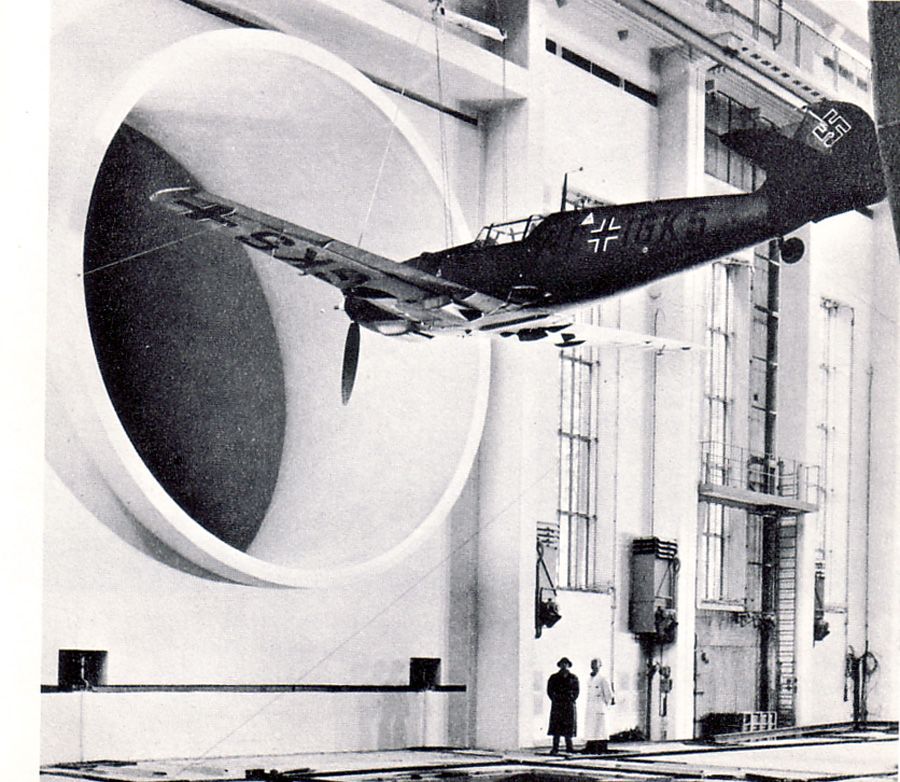

First one is the wind tunnel A3, Luftfahrtforschungsanstalt Hermann Göring, Braunschweig (Brunswik). Max air speed = 350 km/h
Logged
Steam: DrKalv
E:D Snailman

In November 2025, Lusche will return for a 20th anniversary tour. Get your tickets now!

Offline Guppy35

  • Radioactive Member
  • *******
  • Posts: 20386
Re: Messerschmitt in a wind tunnel, 1940
« Reply #4 on: December 04, 2012, 08:45:50 PM »
This photo has shown up in more places of the first 109E.  Note the second bird isn't the same one possibly a test bird V24 according to "Messerschmitt Bf 109 A-E" by Radinger & Schick



Logged
Dan/CorkyJr
8th FS "Headhunters

Offline DEECONX

  • Silver Member
  • ****
  • Posts: 1502
Re: Messerschmitt in a wind tunnel, 1940
« Reply #5 on: December 04, 2012, 09:54:21 PM »
Neat  :aok :aok
Logged

Offline mthrockmor

  • Gold Member
  • *****
  • Posts: 2649
Re: Messerschmitt in a wind tunnel, 1940
« Reply #6 on: December 04, 2012, 09:59:15 PM »
I've noticed that it flys faster with only one horizontal stabilizer, or half a wing. At least that is how I frequently fly them and they seem faster.

Boo
Logged
No poor dumb bastard wins a war by dying for his country, he wins by making the other poor, dumb, bastard die for his.
George "Blood n Guts" Patton

Offline Slade

  • Silver Member
  • ****
  • Posts: 1848
Re: Messerschmitt in a wind tunnel, 1940
« Reply #7 on: December 07, 2012, 11:17:45 AM »
You can get the G and later to 550mph.  :eek:

No joke! You just have to dive from 10k+ in a shallow dive angle.  I have done it a few times now.
Logged
-- Flying as X15 --

Offline GScholz

  • Plutonium Member
  • *******
  • Posts: 8910
Re: Messerschmitt in a wind tunnel, 1940
« Reply #8 on: December 08, 2012, 04:48:07 AM »
That doesn't sound too difficult. If you start from 30k you'll probably get it even faster then that, to near transonic speeds.
Logged
"With the first link, the chain is forged. The first speech censored, the first thought forbidden, the first freedom denied, chains us all irrevocably."

Offline MK-84

  • Gold Member
  • *****
  • Posts: 2272
Re: Messerschmitt in a wind tunnel, 1940
« Reply #9 on: December 08, 2012, 08:33:01 PM »
Amazing, i never knew wind tunnels really existed back then.  At least not to that scale!
Logged

Offline gripen

  • Silver Member
  • ****
  • Posts: 1914
Re: Messerschmitt in a wind tunnel, 1940
« Reply #10 on: December 09, 2012, 10:13:33 AM »
The first picture is in the LFA as Lusche noted.

I'm not sure about the second one; might be the V24 at Chalais-Meudon, but that is a very large tunnel, IIRC oval 16x8m, structures look smaller.
Logged

Offline Devil 505

  • Aces High CM Staff
  • Plutonium Member
  • *******
  • Posts: 9170
Re: Messerschmitt in a wind tunnel, 1940
« Reply #11 on: December 10, 2012, 10:58:21 AM »
The aircraft in the second picture is very interesting. Looks like a testbed for the improvements that would appear on the 109F. Cool find.
Logged
Kommando Nowotny

FlyKommando.com
