Author Topic: 850,000 For a 109  (Read 1537 times)

Offline TwinBoom

  • Gold Member
  • *****
  • Posts: 2960
      • 39th FS "Cobra In The Clouds"
850,000 For a 109
« on: June 06, 2007, 04:18:03 PM »
its a spanish bird but still cool
buchon
TBs Sounds
39th FS "Cobra In The Clouds"NOSEART

Offline Guppy35

  • Radioactive Member
  • *******
  • Posts: 20387
850,000 For a 109
« Reply #1 on: June 06, 2007, 05:16:23 PM »
It's apparently a long way from being flyable which means a lot more money after that first 850K to get it going again.
Dan/CorkyJr
8th FS "Headhunters

Offline Larry

  • Platinum Member
  • ******
  • Posts: 6123
850,000 For a 109
« Reply #2 on: June 06, 2007, 05:31:56 PM »
Do I hear AH community plane?
Once known as ''TrueKill''.
JG 54 "Grünherz"
July '18 KOTH Winner


Offline TwinBoom

  • Gold Member
  • *****
  • Posts: 2960
      • 39th FS "Cobra In The Clouds"
cheap a-26 invader
« Reply #3 on: June 06, 2007, 06:12:37 PM »
TBs Sounds
39th FS "Cobra In The Clouds"NOSEART

Offline Hoarach

  • Gold Member
  • *****
  • Posts: 2406
850,000 For a 109
« Reply #4 on: June 06, 2007, 06:31:57 PM »
137k for a A26.  :O :O :O :O :O
Fringe
Nose Art
80th FS "Headhunters"

Secret Association of P38 Pilots

Offline Platano

  • Silver Member
  • ****
  • Posts: 1325
850,000 For a 109
« Reply #5 on: June 06, 2007, 06:42:30 PM »
Why do Spanish Built 109's have those intake Bulges under the nose? kinda like a Typhoon has...Why is that?
Army of Muppets


Fly Luftwaffe.

Offline OOZ662

  • Platinum Member
  • ******
  • Posts: 7019
850,000 For a 109
« Reply #6 on: June 06, 2007, 06:47:33 PM »
Quote
Originally posted by Platano
Why do Spanish Built 109's have those intake Bulges under the nose? kinda like a Typhoon has...Why is that?


Quote
Originally from the linked website
The installation of the upright V-12 engine makes the nose contours of the HA-1112 quite different from those of the original Messerschmitt Bf 109G, hence its nickname “Buchon” (pouter pigeon). The Buchon are popular performers and are among the only surviving examples of the famous German aircraft that can be seen in the air.
See complete specs and additional photos at http://www.courtesyaircraft.com
A Rook who first flew 09/26/03 at the age of 13, has been a GL in 10+ Scenarios, and was two-time Points and First Annual 68KO Cup winner of the AH Extreme Air Racing League.

Offline Treize69

  • Platinum Member
  • ******
  • Posts: 5597
      • http://grupul7vanatoare.homestead.com/Startpage.html
850,000 For a 109
« Reply #7 on: June 06, 2007, 06:47:44 PM »
Merlin engine. Not an inverted V and different layout, had to redesign the nose.
Treize (pronounced 'trays')- because 'Treisprezece' is too long and even harder to pronounce.

Moartea bolșevicilor.

Offline Platano

  • Silver Member
  • ****
  • Posts: 1325
850,000 For a 109
« Reply #8 on: June 06, 2007, 06:52:39 PM »
Merlin as in the same thing in the spits?

a 109 with a merlin?

And for some reason I'm not understanding the Inverted part..can someone explain please...
Army of Muppets


Fly Luftwaffe.

Offline 68Hawk

  • Silver Member
  • ****
  • Posts: 1365
      • 68th Lightning Lancers
850,000 For a 109
« Reply #9 on: June 06, 2007, 07:05:39 PM »
I don't like that instrument panel.  That can't be original, can it?
68th Lightning Lancers
Fear the reaper no more fear the Lancers!
http://www.68thlightninglancers.net

Offline wooly15

  • Copper Member
  • **
  • Posts: 332
850,000 For a 109
« Reply #10 on: June 06, 2007, 07:51:55 PM »
Not quite 100% on this but I believe it was captured, damaged and due to a lack of DB engines a merlin was fitted.

Offline Treize69

  • Platinum Member
  • ******
  • Posts: 5597
      • http://grupul7vanatoare.homestead.com/Startpage.html
850,000 For a 109
« Reply #11 on: June 06, 2007, 07:55:54 PM »
The Daimler-Benz series of engines used on German built 109s was an Inverted-V design (basically a V flipped upside down), where the Merlin used on the Spanish-built Buchon was a Merlin, which is a conventional V-12 engine. As such the layout of the engine the arrangement of the oil tanks, intakes, radiators, blower, etc. are all difeerent. Also the thrust line is much higher. As a result the entire nose had to be redesigned to take the new engine.

If you think the Buchon looks weird, compare it to the Avia S.199. :O
Treize (pronounced 'trays')- because 'Treisprezece' is too long and even harder to pronounce.

Moartea bolșevicilor.

Offline DaddyAck

  • Silver Member
  • ****
  • Posts: 842
850,000 For a 109
« Reply #12 on: June 06, 2007, 10:56:12 PM »
the avia s-199 was a pig.  Travasty to the sexy sleek 109 for sure! (for those whoom don't know take a 109G airframe built by the Chezks and mate it to a Jumo enjine with a big fat 3 bladed prop)  The Mule was hard to fly and taxi/land due to the shifts in weight and teh retention of the same narrow undercarrage.  IAF bought these after its inception and had a real time with them, but they did the job.

(PS. I would not give that much for a bastardized Spanish109 with a Brittish engine in it.  If I were to shell out that much cash, I would rateher it be for the real deal. Though sadly there are not but I believe 2 or 3 still airworthy.)

(PSS. Who am I kidding, while my wife is a rare and awesome wife whoom actually plays AHII and likes gameing. She would castrate me if I ever took out a loan for that much money, well maby not castrate but I would be a perminant resident on the couch.):(
« Last Edit: June 06, 2007, 11:11:42 PM by DaddyAck »

Offline evenhaim

  • Gold Member
  • *****
  • Posts: 3329
850,000 For a 109
« Reply #13 on: June 06, 2007, 11:08:33 PM »
yep

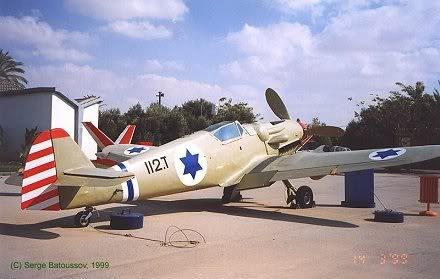

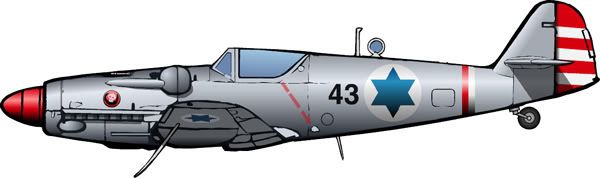

iaf avia 199 after conversion
Freez/Freezman
Army of Muppets
I could strike down 1,000 bulletin board accounts in 5 seconds.
You want ownage, I'll give you ownage! -Skuzzy
I intend to live forever - so far, so good.

Offline evenhaim

  • Gold Member
  • *****
  • Posts: 3329
850,000 For a 109
« Reply #14 on: June 06, 2007, 11:14:20 PM »
i actually have pictures standing alongside the mule and severall other ww2 a/c in the iaf air muesum 1 hour from my houise and this last indepencdence day i watched the black spit 9 make a pass over our beach ;)
